Custom Hydraulic Cylinders

End-To-End Custom Hydraulic Cylinder Design & Manufacture

Consultative Design

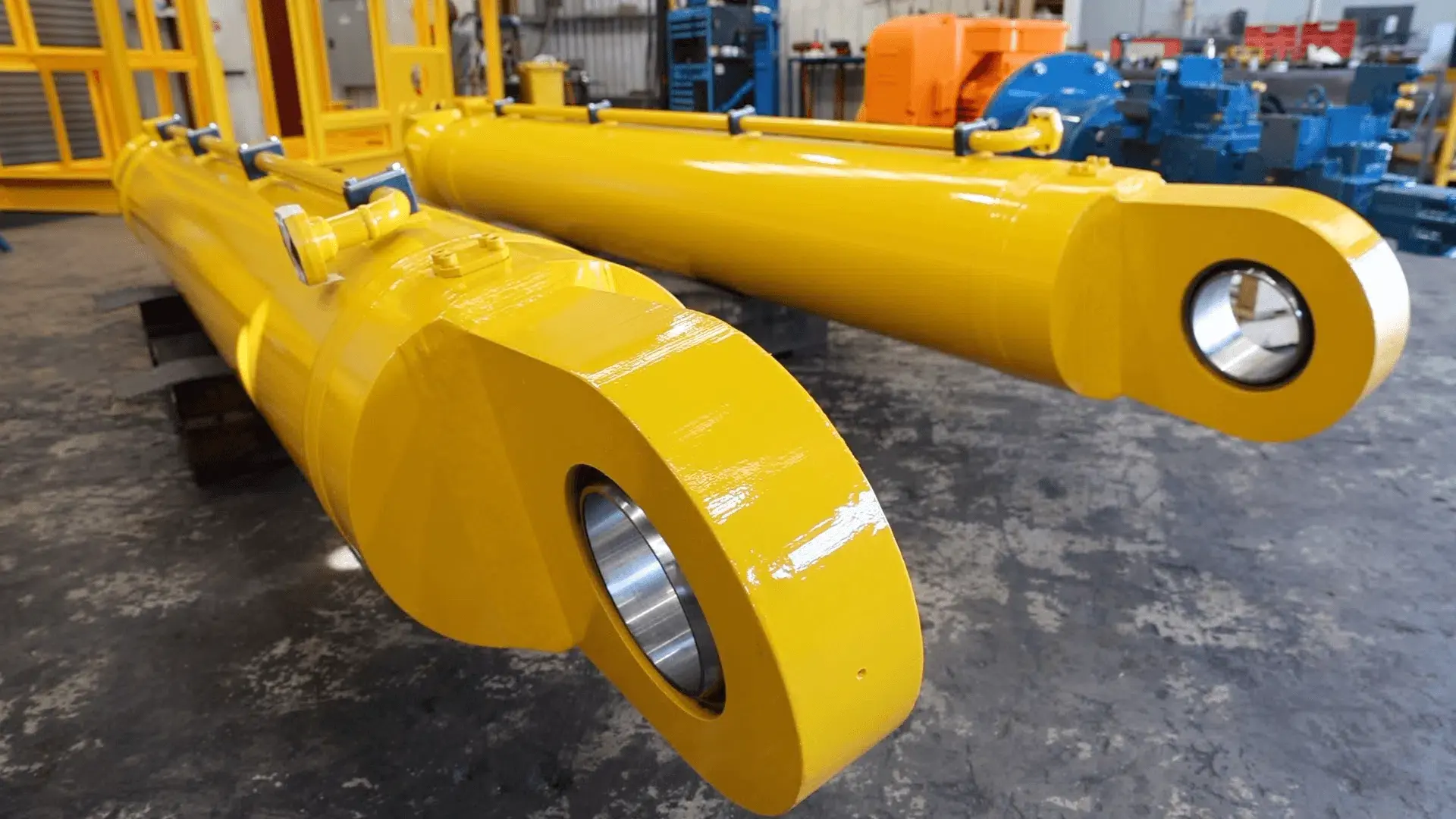

Custom hydraulic cylinder manufacturing

Do you require a bespoke hydraulic cylinder with unique design specifications such as size, stroke, operating pressure, or load capacity? Do you need advanced features like load-sensing technology or load-holding valves integrated into the design?

Berendsen’s in-house engineering & manufacturing capabilities enable us to custom-design and manufacture hydraulic cylinders to virtually any specification. From compact, simple hydraulic rams to complex, telescopic hydraulic cylinders, we engineer and produce custom designs to suit even the most specialised applications.

Screenshot-2025-03-23-at-2.52.52 PM.png

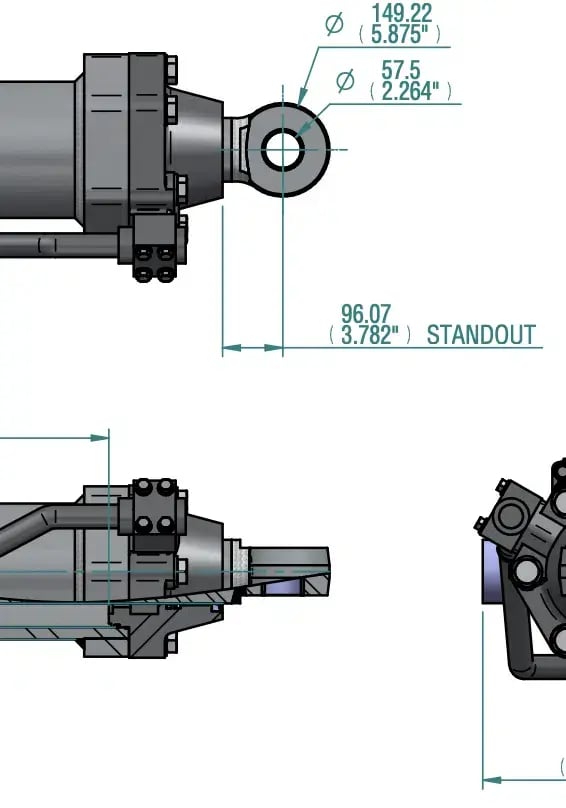

Design on CAD software

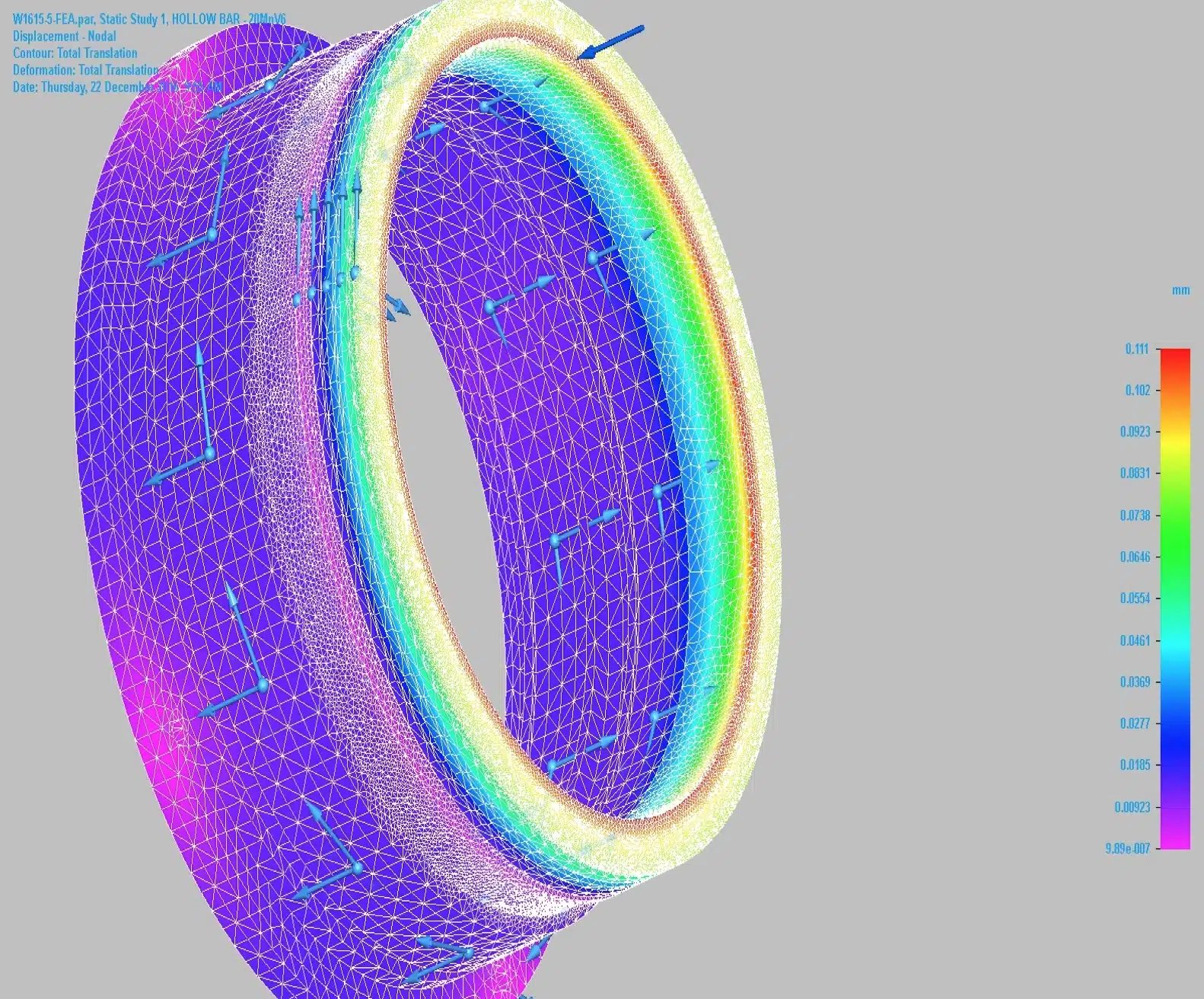

Reliability simulation testing

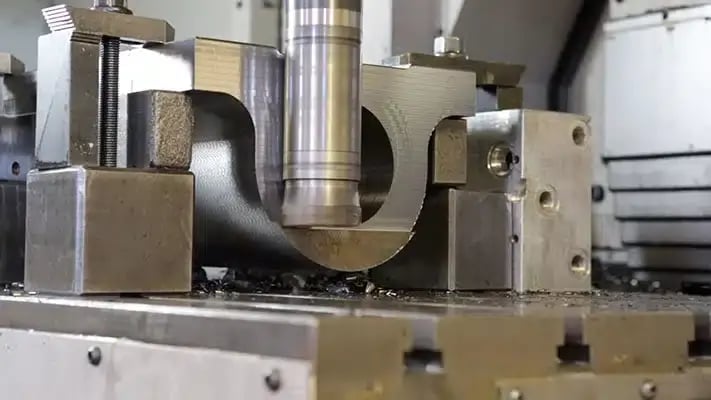

Machining of components


Manufacture of custom hydraulic seals

Engineering & Manufacturing

Bespoke design

Our skilled engineering team collaborates with you to create a custom design concept, carefully considering various factors such as duty cycle, operating environment, push/pull force requirements, current power constraints, maintenance needs, and more.

CAD design

Advanced 3D modelling

Additional features – load sensing

Progressive or fixed cushion

Fast return check valves

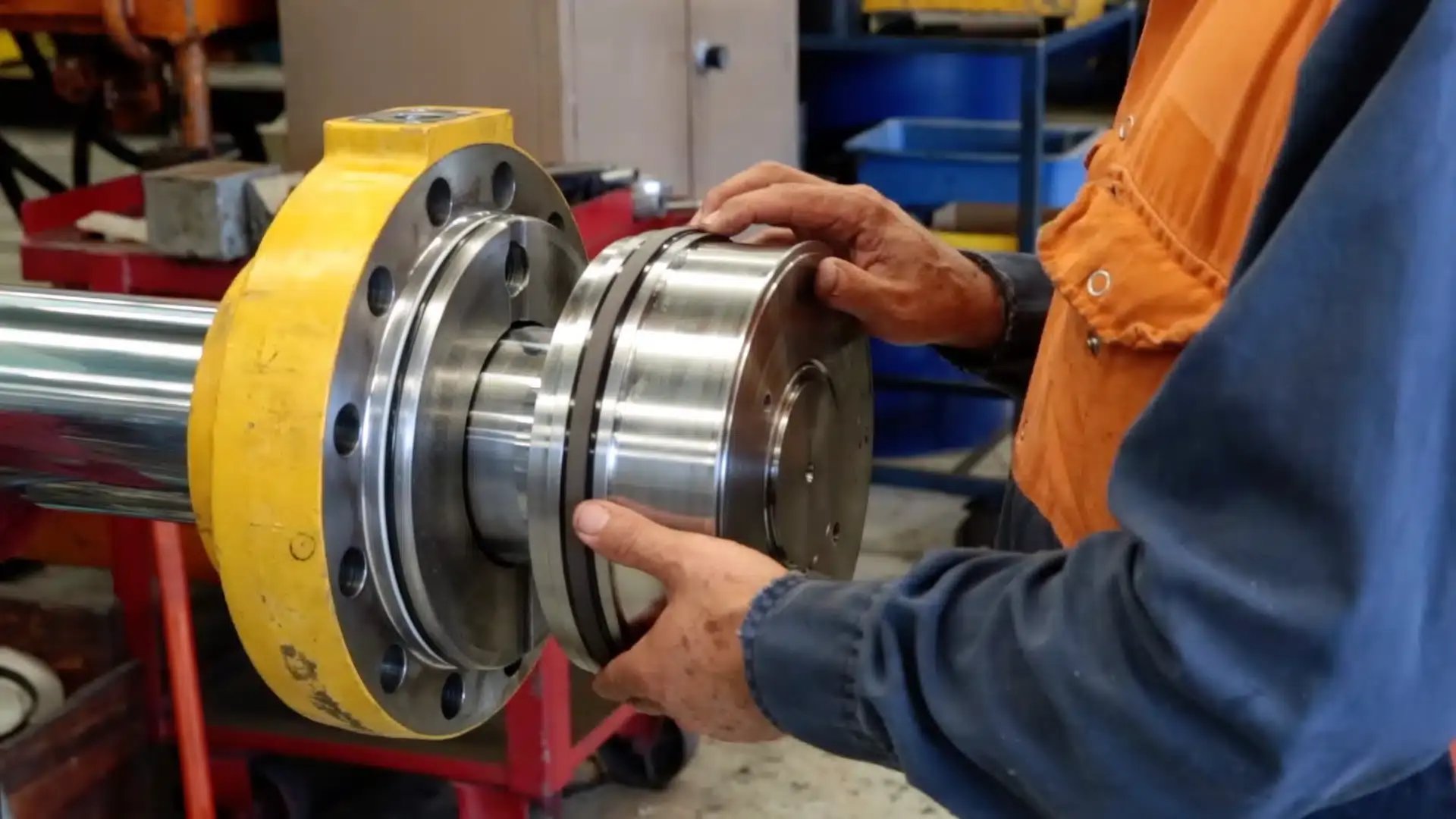

In-house manufacturing

Our state of the art manufacturing hub in Newcastle works closely with our engineering department to produce precision components in any material, with pinpoint accuracy.

Cylinders manufactured in-house by skilled technicians using state of the art machinery including CNC milling, turning, boring, honing and welding capabilities

We manufacture to AS/NZS ISO 9001:2000 standards, and are certified by Standards Australia

In-house hard chrome plating for rods up to 12m

Custom designed seals manufactured from a range of application-specific materials

All cylinders are exhaustively tested and verified and come with Berendsen’s guarantee of quality
